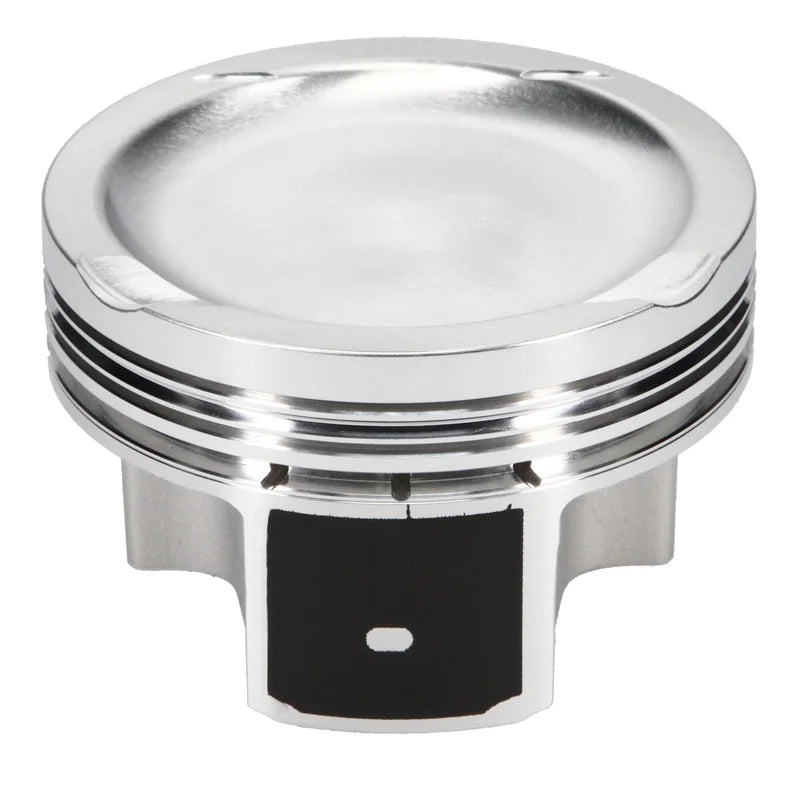

JE Pistons VW 3.287 in. Bore Single 302348S

Description JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports. Attributes GTIN: 00193564013750 Brand Name: JE Pistons Add-On: JG1001-3287 Add-On: 787-2250-18-51C Add-On: 787-050-MW Bore Diameter: 83.50 Compression Height: 1.165 Cylinder Head: 2.0 TFSI Engine: 2.0T FSI 04-08 20MM PIN Forging Type: FSR Industry: Automotive Make: VOLKSWAGEN Oil Ring Thickness: 0.111 Out of Stock Message: Call for Availability Piston Avg Wt: 285 Piston Head Type: Dish Piston Material: 2618.

Piston Pin Length: 2.250 Piston Pin Material: 5115 Piston Pin Outside Diameter: 0.787 Piston Pin Wall Thickness: 0.180 Piston Volume: -8.7 Product Market: Sport Compact Ringset Included: Yes Second Compression Ring Thickness: 0.048 Top Compression Ring Thickness: 0.04 Extended Information Country of Origin: United States Emissions : Electronically Announced Life Cycle Status: Available To Order Packing Information Quantity of Each: 1 Package UOM: EA Dimension: 5.00 x 5.00 x 5.00 inches Weight: 1.3 lb.
